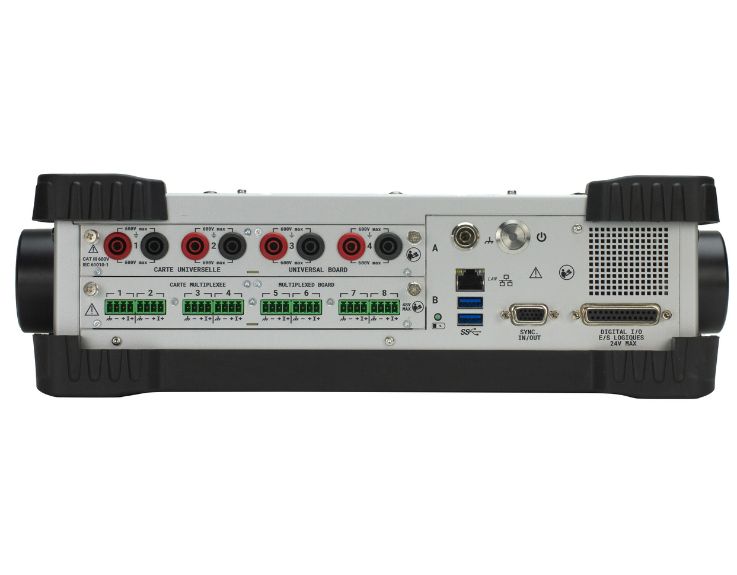

The DAS1820 is a cutting-edge, portable high-speed data acquisition system equipped with a compact dual-slot chassis. It utilises the same robust hardware architecture and module ecosystem as the larger DAS1800, ensuring exceptional performance in a more streamlined design. This shared platform empowers users with plug-and-play functionality, enabling quick module reconfiguration without the hassle of factory recalibration.
For high-speed measurements, the D18-UNI4 and D18-HVM4 modules deliver simultaneous sampling at impressive rates of up to 1 MSa/s. The HVM4 module is engineered for high-voltage measurements, capable of handling up to ±1500 VDC or 1000 Vrms. Moreover, the D18-MUX8 is available for capturing slower trends with its eight multiplexed channels. With an internal 500 GB solid-state drive and an optional battery offering up to four hours of field operation, this instrument guarantees long-duration recording even in the most remote locations.
| Universal | High Impedance | High Voltage | Multiplexed | |
| Channels | 4 | 4 | 4 | 8 |
| Maximum Voltage | ± 600 VDC | ± 600 VDC | ± 1500 VDC | ± 48 VDC |
| RMS Voltage | 424 VRMS | 424 VRMS | 1000 VRMS | – |
| Resolution | 16 bit | 16 bit | 16 bit | 18 bit |
| Sampling Rate | 1 MSa/s/ch | 1 MSa/s/ch | 1 MSa/s/ch | 5 kSa/s |
| Input Impedance | 1 MΩ | 10 MΩ | 10 MΩ | 2 MΩ |
| Input Type | Single Ended | Single Ended | Differential | Differential |
| Isolation | √ | √ | √ | – |
| Voltage | √ | √ | √ | √ |
| Current | √ | √ | √ | √ |
| Thermocouples | √ | √ | – | √ |
| RTDs | – | – | – | √ |
| Frequency | √ | √ | √ | – |
| Counter | √ | √ | √ | √ |
| PWM | √ | √ | √ | – |
The DAS1820 software environment is designed for maximum efficiency and advanced analysis. Users can configure up to three different sampling rates, enabling the recording of single or multiple files simultaneously. The system excels in complex power analysis for DC, single-phase, and three-phase systems (50 Hz, 60 Hz, and 400 Hz), alongside custom script channels for real-time calculations across multiple channels.

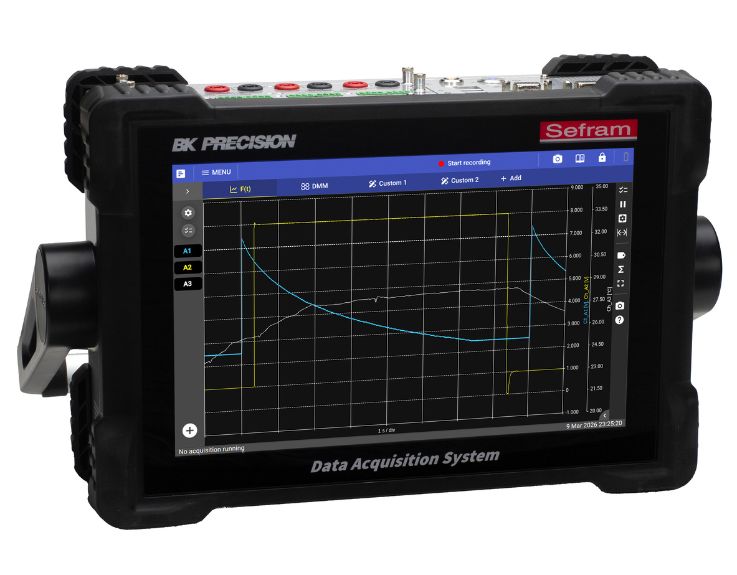

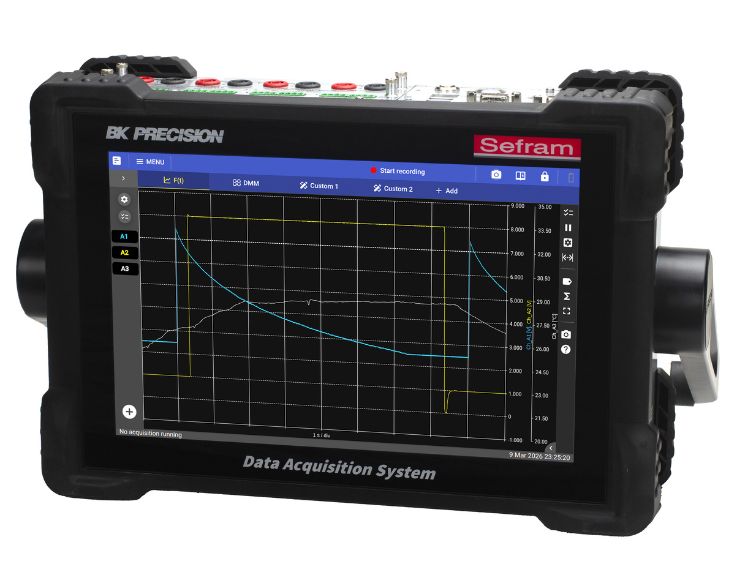

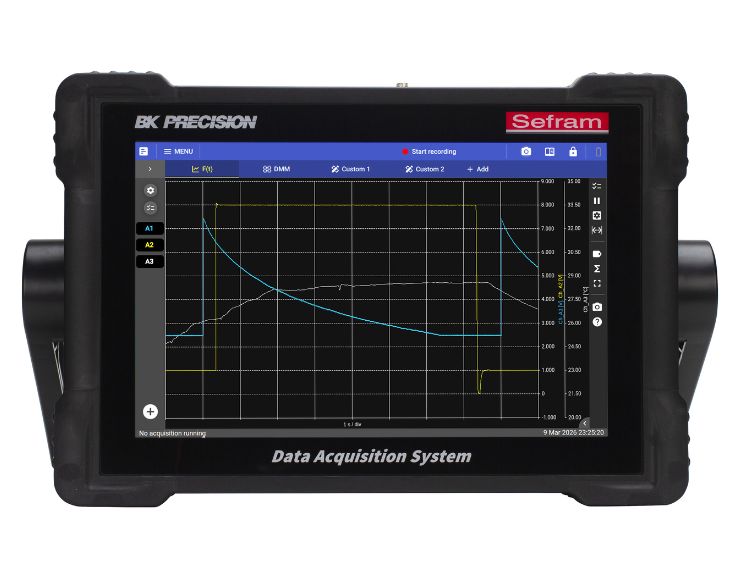

Interact with your data seamlessly through the integrated 12-inch HD touchscreen, which supports intuitive gestures like pinch-to-zoom for real-time waveforms, phasor diagrams, and histograms. Additionally, the DAS1820 offers remote control capabilities via a web server or VNC and comes with complimentary DASpro software for PC-based data viewing.
Note: All specifications apply to the unit after a temperature stabilization time of 60 minutes over an ambient temperature range of 23 °C ± 5 °C.
Data Acquisition System |
||
Recording (files written to SSD) |
||
| Max Sampling Rate *1 | 1 MSa/s up to 8 channels | |
| Recording Groups | 3 | |
| Write Speed | 50 MB/s | |
| File Format | ASAM MDF4 (.mf4) | |
| File Size Limit | 90% of disk capacity | |
| At End of Acquisition | Notify, re-arm trigger | |
| Markers | On user action, On event | |
Real Time Measure |
||
| Display Mode | F(t) | Roll mode: 100 ms/div to 10 min/div Scope mode: 10 μs/div to 50 ms/div |
| DMM | Acquisition time: 200ms (10 NPLC *2 at 50Hz), 2s (100 NPLC *2 at 50Hz Display mode: Bar graph, reduce, MIN/MAX |
|
| Record Live View | Typical Refresh period 2s, Zoom Mode |
|
| Phasor Diagram | Data sampled at 10 kHz Vector amplitude based on RMS value |
|
| Histogram | 50 Hz to 60 Hz: 1 to 50 harmonics 400 Hz: 1 to 10 harmonics |
|
| Custom | Customize up to 10 dashboards with unique widget arrangements Widgets: F(t), Record Live F(t), DMM, Phasor diagrams, Histogram, Images |
|
File Viewer |
||
| Open File Time (typical) | 10 sec per 100 GB of file *3 | |
| Subplot | 16 | |
| Cursors | Horizontal, Vertical | |
| Measurements | On the data displayed or between cursors Min, Max, Pk to Pk, Frequency, RMS, Rising time |
|
Trigger System |
||
| Compute Period | 1 µs | |
| Source | Analogue and logic channel, external source, manual, date/ time, delay (on start), duration (on stop), AND/OR combination of channels (128 max) |
|
| On Analogue Channel | Edge (rising, falling, both), Threshold (above, below), windows (in, out) |
|
| Pre-trigger | 128 M samples | |
| Post-trigger | 1000 s maximum | |
*1 For D18-UNI4 and D18-HIZ4 Module
*2 NPLC: Number of power line cycles
*3 Time with only the 1st frequency group used
Digital I/O |
|
Input |
|
| Number of Channels | 16 |
| Max Voltage | 24 V |
| Threshold | 1.2 V to 2.8 V |
| Sampling Interval | 1 μs (1 MSa/s) each channel |
Output |
|
| Number of Channels | 4 |
| Output Characteristics | TTL 5 V, 10 mA |
| Trigger Source | Analogue / Digital channels, acquisition start / stop, disk full |
| Power Supply *4 | + 12 V ± 5 %, 200 mA |
*4 Used to power the isolated digital input board
Synchronisation |
||
Sync and Trigger I/O (SUB-D 15 HD Connector) |
||
| Input | Signal Level | TTL 3.3 V |
| External Trigger | Pull-up resistor: 10 kΩ, Rising edge sensitive Minimum pulse width: 100 μs |
|
| External Start / Stop | Pull-up resistor: 10 kΩ, Rising edge sensitive for start Falling edge sensitive for stop Minimum pulse width: 500 ms |
|
| Output | Signal Level | TTL 3.3 V |
| Trigger | 1 ms positive pulse at trig event | |
| Start / Stop | Set when record is launched | |
| Sampling | Clock with 50%duty cycle at the frequency of the fastest recorded group | |
| PPS | 100ms pulse each second base on the main clock of the unit | |
IRIG and GPS (option) |
||
| IRIG / GPS Input | IRIG format B122/B126 Time error between reference clock and acquisition clock, < ± 10 μs |
|
PTP (option) |
||
| Ethernet PTPV2 IEEE1588 | Time error between reference clock and acquisition clock, < ± 10 μs | |
Software Feature |
||
| Remote Access | VNC for remote monitoring and control Web Server |
|
| Event Notify | ||
| File Management | FTP NAS (Network storage for file backup) |
|
| Bench Automation | SCPI command port (23 or 5025) | |
| Storage Management | Cleaning policy option for automatically removing old files after exceeding a specific number of files or a date |
|
| Sensor Library | Predefined sensors and user created | |
| Date and Time | Manual, NTP | |
| Software Update | Through web or USB | |
| Languages | English, French, Portuguese, Chinese, Spanish, German | |
Power Analysis |
|||||
General |
|||||
| Network Type | DC; AC: Single-phase (1U/1I), 3-phase delta (3U/3I), 3-phase Wye in 3-wire (3U/3I) and 4-wire (4U/4I) |
||||
| Network Frequency | DC, 50Hz, 60Hz, 400Hz | ||||
| Sampling Rate | 10 kHz | ||||
| Number of Networks | 5 | ||||
| Compatible Modules | D18-UNIV4 & D18-HVM4 & D18-HIZ4 | ||||
| Record File | MDF4 | ||||
Calculation Interval |
|||||
| Network Frequency |
1st Interval |
2nd Interval |
3rd Interval |
4th Interval |
5th Interval (custom) |
| DC | 200 ms | 3 s | 10 min | 2 hr | 1 ms to 100 ms |
| 50 Hz | 10 periods | 150 periods | 10 min | 2 hr | 1-2-5 period |
| 60 Hz | 12 periods | 180 periods | 10 min | 2 hr | 1-2-5 period |
| 400 Hz | 80 periods | 1200 periods | 10 min | 2 hr | 1-2-5-10-20-40 period |
DC Measurements |
|||||
| Voltage | Mean, Max, Min, peak-to-peak | 0.1% Udin *5 | |||
| Current | Mean, Max, Min, peak-to-peak | 0.1% Idin *6 | |||
| Power | Active | 0.1% Pdin *7 | |||
| Energy | Active | - | |||
AC Measurements |
|||||
| Voltage | Mean, True RMS, Max, Min, peak-to-peak, Crest factor |
0.1% Udin *5 | |||
| Phase to ref channel | ± 0.5˚ | ||||
| Current | Mean, True RMS, Max, Min, peak-to-peak, Crest factor |
0.1% Idin *6 | |||
| Phase | ± 0.5˚ | ||||
| K Factor | 0.1% | ||||
| Power | Active, Reactive, Apparent | 0.1% Pdin *7 | |||
| Power Quality | cos (Ф) | ± 0.01 | |||
| tan (Ф) | - | ||||
| Ф | ± 0.5˚ | ||||
| PF | ± 0.001 | ||||
| THD | 1.0% | ||||
| Energy | Active, Reactive | - | |||
| Voltage Harmonics | 50 Hz, 60 Hz: 1 to 50 harmonics | 0.1% Udin *5 | |||
| 400 Hz: 1 to 10 harmonics | |||||
| Current Harmonics | 50 Hz, 60 Hz: 1 to 50 harmonics | 0.1% Idin *6 | |||
| 400 Hz: 1 to 10 harmonics | |||||
*5 : Udin - Nominal network voltage
*6 : Idin - Nominal network current
*7 : Pdin - Nominal network power (Udin*Idin)
General |
|
| Internal Solid State Memory | SSD 3D NAND Flash - 500GB |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to 60 °C |
| Display | 12" HD touchscreen (1200 x 800) |
| Power Supply | 110 VAC to 240 VAC, 50 - 60 Hz (75VA max) |
| Interfaces | USB3.0 (x2) and LAN 1Gbps (x1) |

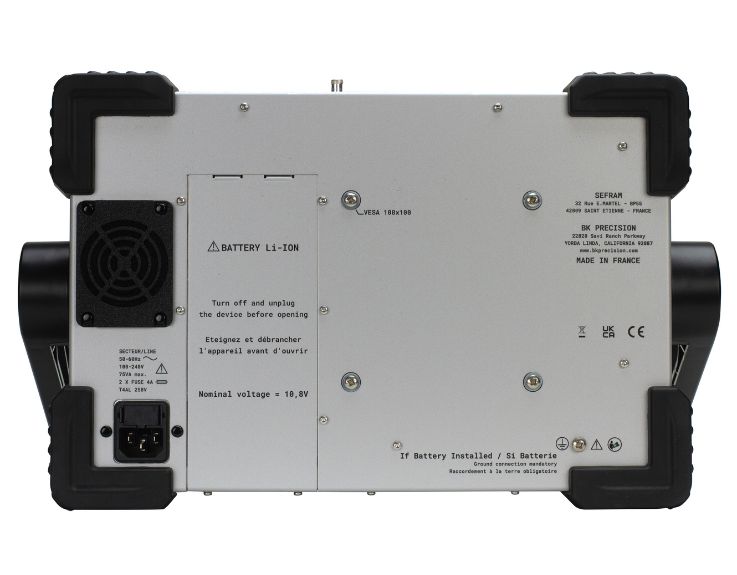

| Battery (optional) | Removable, Lithium-ion - 10.8 V, 75 Wh |
| Battery Life (typical) | 4 hrs - One Module D18-UNI4 installed 3.5 hrs - Two Module D18-UNI4 installed |
| Weight | 5 kg - Two Module installed + Battery option 4.5 kg - One Module installed + Battery option |
| Safety | Low Voltage Directive (LVD) 2014/35/EU EN 61010-2010+A1:2019, EN 61010-2-030 (2021+A11/2021) |
| Electromagnetic Compatibility | EMC directive 2014/53/EU, EN IEC 61326-2-1 (2021) EN IEC 61326-1 (2021), EN 61000-3-2 (2019+A1/2021) EN 61000-3-3 (2013+A1/2019) |
| Dimensions (W x H x D) | 400 x 245 x 120 mm |
| Warranty | Base unit and modules: 3 years Battery (D1820-BAT): 1 year |
| Supplied Accessories | Power cord, SUB-D 25 pin male connector and back shell, SUB-D 15 pin male connector and back shell, rugged carrying case |
| Languages | English, French, German, Spanish, Portuguese, Chinese |
