Description

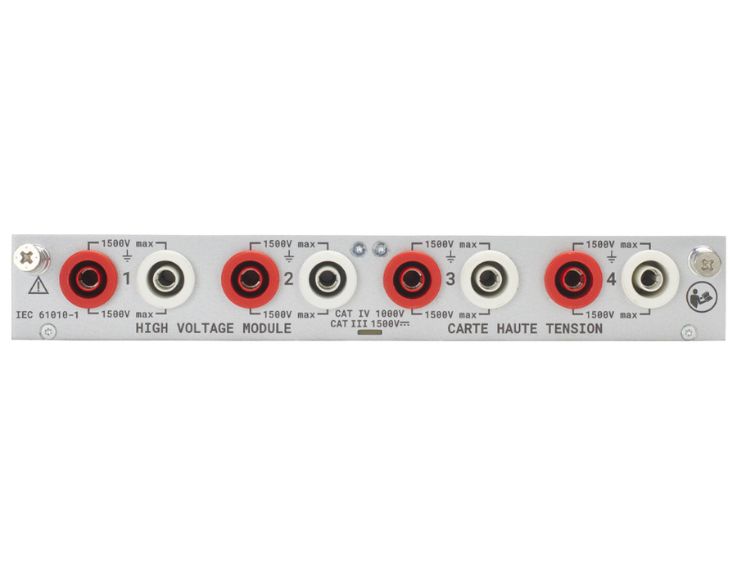

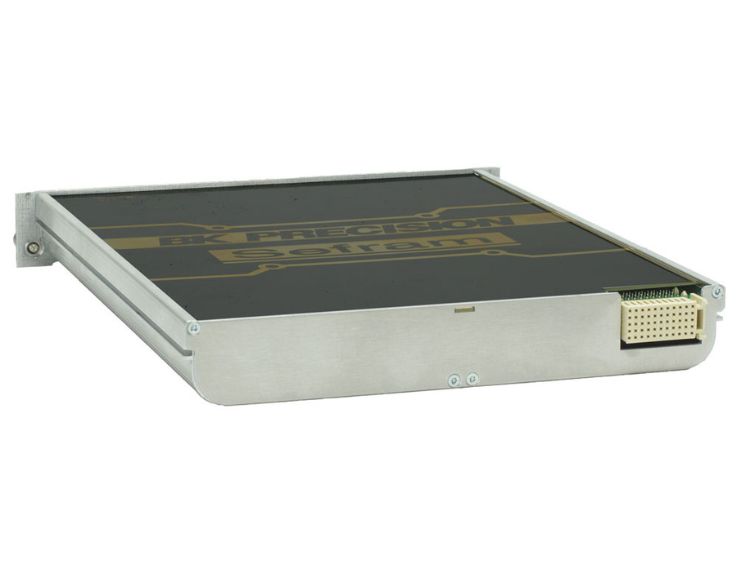

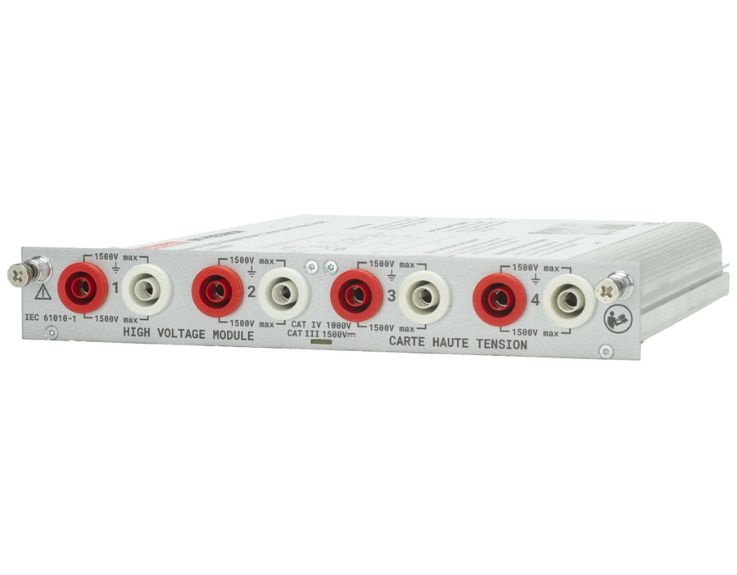

High Voltage Module for DAS1800
High Voltage Module for DAS1800 and DAS1820 from B&K Precision and Sefram Instruments.
Configure the DAS1800 to fit your needs with any combination of modules up to 10.
Select any 2 modules in the portable DAS1820.
| |
Universal |
High Impedance |
High Voltage |
Multiplexed |
| Channels |
4 |
4 |
4 |
8 |
| Maximum Voltage |
± 600 VDC |
± 600 VDC |
± 1500 VDC |
± 48 VDC |
| RMS Voltage |
424 VRMS |
424 VRMS |
1000 VRMS |
– |
| Resolution |
16 bit |
16 bit |
16 bit |
18 bit |
| Sampling Rate |
1 MSa/s/ch |
1 MSa/s/ch |
1 MSa/s/ch |
5 kSa/s |
| Input Impedance |
1 MΩ |
10 MΩ |
10 MΩ |
2 MΩ |
| Input Type |
Single Ended |
Single Ended |
Differential |
Differential |
| Isolation |
√ |
√ |
√ |
– |
| Voltage |
√ |
√ |
√ |
√ |
| Current |
√ |
√ |
√ |
√ |
| Thermocouples |
√ |
√ |
– |
√ |
| RTDs |
– |
– |
– |
√ |
| Frequency |
√ |
√ |
√ |
– |
| Counter |
√ |
√ |
√ |
√ |
| PWM |
√ |
√ |
√ |
– |
| Number of Channels |
4 |
| Input Type |
Isolated differential input - 4mm Banana Plug |
Voltage
| Max. Input Voltage |
± 1500 VDC or 1000 Vrms |
| Overvoltage Protection |
± 2000 VDC or 1414 Vrms *1
|
| Range (9 Ranges) |
± 5 V / 10 V / 25 V
± 50 V / 100 V / 250 V
± 500 V / 1000 V / 2000 V
|
| DC Accuracy *2 |
± 0.06% of full range
|
| Offset Drift |
± 50 ppm/°C ± 1 μV/°C
|
| Input Impedance (DC) |
10 MΩ |
| Input Capacitance |
10 pF |
Intrinsic Noise *3
(standard deviation in % of the span) |
< 0.02%
|
CMRR
(Common mode rejection range) |
> -120 dB
|
| Crosstalk |
> -120 dB
|
| Channel Isolation |
CH to CH and CH to GND, > 100 MΩ at 2000 VDC
|
| Safety |
CAT III 1500 VDC, CAT IV 1000 V
|
Bandwidth and Filters
Bandwidth
(-3 dB) |
Ranges ≤ ± 2.5 V |
30 kHz |
| Ranges ≥ ± 50 V |
100 kHz |
| Analogue Filter |
3rd order (-60 dB/dec) |
100 Hz, 1 kHz, 10 kHz |
| Digital Filter |
IIR 4th order (-80 dB/dec) |
0.01 Hz to 10 kHz |
| Type |
Low pass, high pass, band pass, band stop |
| Filter Response |
Butterworth, Bessel, Chebyshev, Inverse Chebyshev, Elliptic, Papoulis, Gaussian
|
Data Acquisition
| ADC |
16 bit – SAR |
| Sampling Interval |
1 μs (1 MSa/s) each channel |
Time and Counting
| Threshold |
Set by user, auto |
| Duty Cycle |
10% minimum – (minimum pulse width, 20 μs) |
| Counter |
48 bits |
| Frequency |
0.1 Hz to 50 kHz |
Accuracy:
0.01% from 0.1 Hz to 10 Hz
0.05% of the value from 10 Hz to 50 kHz |
| PWM |
Absolute error:
0.1% - 0.1 Hz to 1 kHz
0.5% ≥ 1 kHz to 5 kHz |
True RMS
| Compute Period |
Compute on the 1 Ms/s data flow
Each period until 100 Hz
10 ms between 100 Hz and 10 kHz |
Accuracy
(on a Sine wave for range ≥ 10 V) |
10 Hz to 2 kHz |
± 0.1% of full range |
| 2 kHz to 10 kHz |
± 0.3% of full range |
Other
| Current |
Through shunt or clamp |
| Sensor |
0 to 10 V, 4 to 20 mA (with external shunt), duty cycle or frequency sensor, other user defined settings |
| Calculations |
Derivative, integral, min - max - avg - pk to pk on Δt |
Note: All specifications apply to the unit after a temperature stabilization time of 30 minutes over an ambient temperature range of 23 °C ± 5 °C.
*1 CH to Earth GND withstand voltage 6.6 kV AC for 5 seconds
*2 Direct measure, full bandwidth, value taken on DMM display at 10 (50 Hz) / 12 (60 Hz) NLPC (200 ms)
*3 Measure ± short circuit terminate to 50 Ω on chassis during 1 sec at the fastest acquisition speed and full bandwidth
