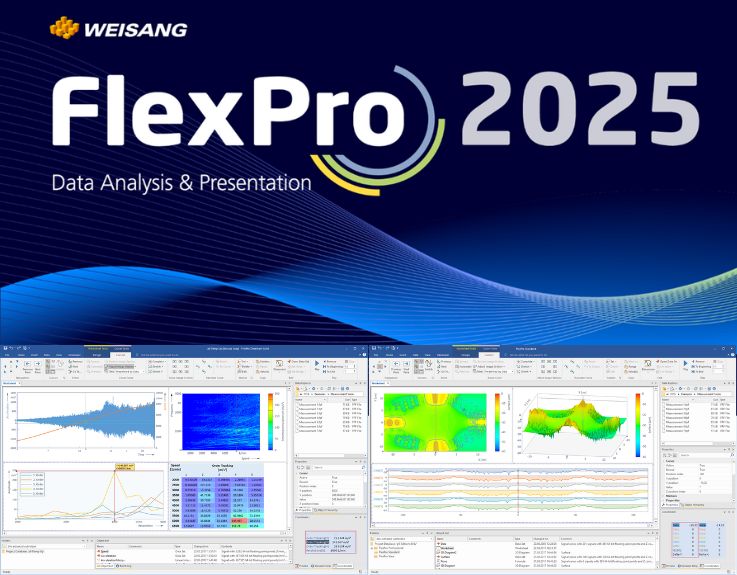

Powerful and intuitive, the software can easily import data in a variety of formats and excels in analysing dynamic processes.
Call for price
FlexPro® 2025 Data Analysis Software is available in 4 versions:
View OEM is a free user-friendly edition. It allows you to create graphics and documents, which can be easily edited, allowing the user to design, scale and position diagrams, tables and text.
Basic includes more presentation features, templates and a basic set of mathematical analysis functions.
Professional is the perfect solution for team collaboration and offers the performance, team functions and scalability required for professional use.
Developer Suite is the complete package and provides all FlexPro® features and options.
See the Specifications section for more detail of what is included in each software package.
The Developer Suite Package features all the below options, however these can be individually purchased for use with the Professional version. They are not compatible with the Basic software, or the View OEM.
The new Data Explorer option indexes the measurement data on your hard disk and provides the data to you for import. View statistical information and a preview of the data immediately without having to import the data first.
You can also use configurable queries to search for data attributes and quickly find the data sets you want to analyse.
The integrated ASAM-ODS browser.
The automotive industry uses the ASAM ODS standards for managing test data in a database. FlexPro®’s integrated ASAM ODS Browser features convenient access to the ASAM ODS server and to ATF/ATFX data exchange formats.
The Advanced Statistics option offers you a variety of statistical tests and the ability to calculate theoretical distributions. Additionally, the inductive statistics testing and estimating procedures offer the possibility to classify the population from which these samples originate. An important application for inductive statistics is Statistical Process Control (SPC).
Rainflow Count
Counting procedures like the Rainflow counting procedure have proved to be an invaluable analysis tool in fatigue testing applications. Counting is based on a search for specific events in the load-time function, e.g. a certain load level being exceeded or a load alternation of a certain amplitude. For this purpose, the range of values of the load-time function is divided into discrete intervals, or classes. Each event found is assigned to a class and counted in this class.
FlexPro® Analysis Wizard gives you visual feedback when changes are made to algorithms, parameters or the type of spectrum. Uses real time 2D and 3D spectral graphs.
Perform an order tracking analysis for speed-dependent vibrations quickly and easily. Order tracking evaluates vibrations or noise of rotating machines. Here, the frequencies in the spectrum are related to the respective speed and represented as orders.
Additionally, this software option supports run-up analyses, order analyses at constant speed and order analyses with varying speed. The speed can also be specified as a pulse signal with a fixed number of pulses per revolution. All implemented methods are flexible and robust against noise in the speed signal.
The FlexPro® Analysis Wizard merges steps for filter design, filtering and presentation into a simple sequential process. Using real-time 2D and 3D graphics, FlexPro® provides immediate visual feedback whenever any change is made to the filter specification.
IIR filters include internal feedback (recursive filters) and provide a high degree of steepness with a short filter length, making it possible to design low pass, high pass, bandpass and bandstop filters.
FIR filters avoid feedback and are therefore always stable. FlexPro® offers you two procedures for calculating phase-linear filters with a minimum filter length.
Determine the sound level and sound power in one easy, automatic step. You can also analyse multiple channels of sound signals and their sound level at the same time and calculate the sound power. FlexPro®’s Analysis Wizard presents the results in tables and diagrams while you are parameterizing the analysis.
Perform calibrations to obtain accurate sound levels. You may either specify a fixed calibration value or let FlexPro® calculate the calibration value from a calibration signal recorded with the calibrator attached to the microphone.
FlexPro® includes standardized acoustic methods such as:
Sound power computation
Sound level evaluation
Loudness computation
NEW: Sharpness
Octave analysis using time domain filters
Analyse the effects of vibrations on the human body: For example, whole-body and hand-transmitted vibrations caused by machine, tool and vehicle vibrations transmitted through the seat or the feet or through the palms and fingers.
Prepare a complete analysis based on the measured acceleration signals with daily exposure – the times until the exposure action value and the exposure limit value are reached – and then click a button to determine whether immediate action should be taken.
Please see the below presentation video to discover more about FlexPro® and its features.
♦ Included
O Optional
VIEW OEM |
BASIC |
PROFESSIONAL |
DEVELOPER
|
|
Operation and Data Management |
||||
| Project Database, Size Limited only by Hard Drive Space</td> |
♦ | ♦ | ♦ | ♦ |
| Modern Interface with the Look and Feel of MS Office |
♦ | ♦ | ♦ | ♦ |
| Import Excel Files, Text Files and Over 60 Binary Formats |
♦ | ♦ | ♦ | |
| Customizable Menus and Toolbars | ♦ | ♦ | ♦ | |
| User Profile Management with Configurable User Permissions |
♦ | ♦ | ♦ | |
| Indexing and Data Queries for Analysing Series Measurements |
♦ | ♦ | ||
| Multicore Processor Support and Hardware Graphics Acceleration. |
♦ | ♦ | ||
| Share Templates with Colleagues over Your Network for Presentation and Analysis |
♦ | ♦ | ||
| ASAM ODS file Import Option | O | ♦ | ||
| Data Explorer Option | O | ♦ | ||
Presentation |
||||
| 2D and 3D Diagrams, Column, Row and Cell table, Text and Medium |
♦ | ♦ | ♦ | ♦ |
| Document Editor | ♦ | ♦ | ♦ | ♦ |
| Presentation and Document Templates |
♦ | ♦ | ♦ | |
| Analyse measured Data and Videos Synchronously |
♦ | ♦ | ||
| Combine Individual Reports into Final Reports |
♦ | ♦ | ||
Analysis |
||||
| Analyse and Dimension Measured Data Interactively with Data Cursor |
♦ | ♦ | ♦ | ♦ |
| Simple Calculations in FPScript | ♦ | ♦ | ♦ | ♦ |
| Full Range of Functions and Operators for FPScript |
♦ | ♦ | ♦ | |
| Custom FPScript Functions | ♦ | ♦ | ♦ | |
| Analysis and Presentation at the Click of a Button using the Analysis Wizard |
♦ | ♦ | ♦ | |
| Design Analysis Templates Yourself |
♦ | ♦ | ♦ | |
| Ready-to-Use Analyses for Curve Fitting, Signal Analysis, Statistics, Spectral Analysis, Event Isolation, Filtering, Counting |
♦ | ♦ | ♦ | |
| Parallel Loop in FPScript | ♦ | ♦ | ||
| Time-Frequency Spectral Analysis | ♦ | ♦ | ||
| Circle Approximation | ♦ | ♦ | ||
| Python Integration | ♦ | ♦ | ||
| Statistics Option | O | ♦ | ||
| Counting Procedures Option | O | ♦ | ||
| Order Tracking Option | O | ♦ | ||
| Spectral Analysis Option | O | ♦ | ||
| Human Body Vibrations Option | O | ♦ | ||
| Acoustics Option | O | ♦ | ||
| Digital Filters Option | O | ♦ | ||
| SI Unit Management and Physical Quantities According to ISO 80000 |
♦ | ♦ | ♦ | ♦ |
| Formula Debugger for Python and FPScript Formulas |
♦ | ♦ | ♦ | ♦ |
| Exporting Data and Presentations | ♦ | ♦ | ♦ | ♦ |
Automation |
||||
| Expand or Control FlexPro® Remotely Using Visual Basic, C#, C++, etc. |
♦ | ♦ | ♦ | ♦ |
| Macro Recorder | ♦ | ♦ | ♦ | ♦ |
| Integrate Macros into the User Interface |
♦ | ♦ | ♦ | |
| Create Control Panels and Forms with Control Elements |
♦ | ♦ | ||
| Microsoft Visual Basic for Applications (VBA) |
♦ | ♦ | ||
To run FlexPro® 2025, the system must meet the following minimum requirements:
FlexPro® 2025 is only available as 64-bit software and therefore requires a 64-bit operating system.
For applications with very large amounts of data, e.g. spectral analysis of acceleration signals, we recommend using the Professional or Developer Suite edition of FlexPro® on a system with four or more cores, equipped with 16 GB RAM, 64-bit Windows 11 and an SSD.
