High speed sampling – up to 120Hz (R550Pro model), high resolution 1.2MP SR Thermal Image (1280 x 960 pixels) and automatic recording functions.
Call for price

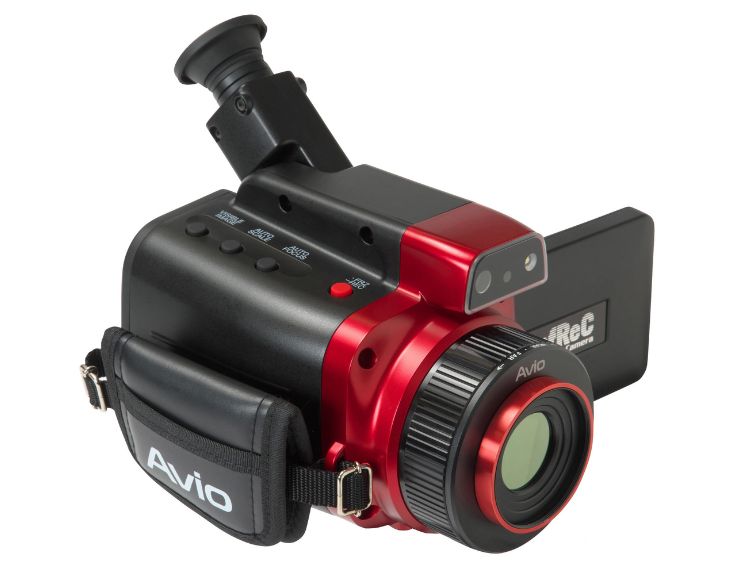

The AVIO R550 series is a high resolution, high speed, professional handheld thermal imaging camera. It has many significant features. Firstly the high speed sampling (e.g. up to 120Hz for the R550Pro model) which is the highest speed sampling in the portable VGA class equipment (as of August 2018). Secondly it benefits from a high resolution 1.2MP SR Thermal Image (1280 x 960 pixels) and lastly, features automatic recording functions.
2 models are available depending on your application. The AVIO R550Pro with a temperature range of -40 to +2000°C makes this model ideal for R&D, whilst the R550 with a temperature range of -40 to +650°C is ideal for electrical inspection applications.
***Power kit available separately***
Features |
R550Pro |
R550Pro-D |
R550 |
R550-D |
|
Basic Performance |
|||||
| Infrared Detector | Uncooled Focal Plane Array (microbolometer) | ||||
| Spectral Range | 8 to 14µm | ||||
| Measuring Range | -40 to 2000°C | -40 to 650°C | |||
| Sensitivity (NETD) | 0.025°C at 30°C (with S/N improvement) | ||||
| Accuracy | ±1°C *1 | ||||
| Frame Rate | 30 Hz /60 Hz *2 /120 Hz *3 | 7.5 Hz | 30 Hz | 7.5 Hz | |
| Detector Pixels | Standard Mode: 640(H) x 480(V) pixels Super Resolution (SR) Mode: 1280(H) x 960(W) pixels | ||||
| Field of View (FOV) | 32°(H) x 24°(V) with standard lens | ||||
| Spatial Resolution | Standard Mode: 0.87mrad Super Resolution Mode: 0.58mrad equivalent *5 |
||||
| Focal Distance | 10cm to infinity with standard lens *6 | ||||
| Focus | Auto / Manual | ||||
Image Display |
|||||
| Auto Functions | Auto-scale, Auto-focus, Full-Auto | ||||
| Colour Pallet | 7 pallets - Rainbow, Brightness, Hot White, Hot Black, etc | ||||
| Gradation | 256/32/16/8 Grade | ||||
| Visible Camera | CMOS Camera 5M Pixels | ||||
| Visible / Thermal Fusion | Side-by-Side, Fusion (transparency changeable), Picture-in-Picture (transparency changeable) | ||||
| Display Functions | 1 to 8 times continuous zoom (with display positioning scroll), Grid Overlay, 9 images multi-display (replay mode) |
||||
| Image Quality Improvement | De-noising, Averaging (with ghost rejection), Edge enhancement | ||||
Measuring Functions |
|||||
| Point Temperature | 10 Movable Points, Temperature Tracking: MAX/MIN x 1 each, Delta T | ||||
| Line Profile | Horizontal, Vertical, Horizontal & Vertical | ||||
| Temperature Display in Assigned Region | MAX, MIN and AVG in Box (for up to 5 Boxes) | N/A | |||
| Alarm Function | Alarm Display, Alarm Sound, Colour Alarm, Alarm Recording | ||||
| Alarm Signal Output | N/A | ||||
| Temperature Correction | Emissivity, Environmental / Background, Distance | ||||
| Emissivity | Multi-point Correction, Emissivity Table | ||||
| Emissivity Reverse Calculation | N/A | ||||
| Drift Stabilizer | Provided | N/A | |||
Storage and Output |
|||||
| Storage Device | SD card, Conform to SDHC | ||||
| Data Storage | Still Image : JPEG with temperature data (14 bit), Visible image Movie (only for R550Pro / R550Pro-D) : SVX file (Avio original file) |
||||
| Super Resolution | Provided | ||||
| Quick Panorama | Horizontal equivalent to 100°/ Vertical equivalent to 75° | ||||
| SD Movie Recording | Max 3 Hz | N/A | |||
| Interval Recording | 3 sec to 60 min interval, with Visible image recorded | ||||
| External Trigger Recording | Provided | N/A | |||
| Voice Recording | 30 sec recording, replay per a Thermal image | ||||
| Text Annotation | Annotate up to 128 characters per a Thermal image, Characters imported from SD Card |
||||
| Interface | USB 2.0 | Mass-Storage, Image transfer (Thermal image with Visible image, maximum transfer speed at 30 Hz) *7 | |||
| Windowing transfer (Thermal image) W1 : 60Hz (640x240 pixels) W2 : 120Hz (640x120 pixels) |
N/A | ||||
| Automatic recording function by external trigger input | N/A | ||||
| Video Output | NTSC / PAL Switchable | ||||
| Alarm Output | Contact Signal. Non Voltage | N/A | |||
| External Trigger Input | Pulse Signal | N/A | |||
Other |
|||||
| Display | 3.5" LCD Monitor (with tilt and brightness adjustment), Colour View Finder (with tilt adjustment) | ||||
| Auxiliary | Laser Pointer (Red, class 2, conform to PSC regulation), LED Light, Remote Controller | ||||
| Environment Resistance | Operating Temperature & Humidity | -15 to 50℃, 90%RH (non-condensing) | |||
| Storage Temperature & Humidity | -40℃ to 70℃, 90%RH (non-condensing) | ||||
| Vibration & shock | 29.4m/sec2（3G), 294m/sec2（30G) | ||||
| EMC | Conform to CE regulations (Class A) | ||||
| Dust & splash proof | Protection class IP54 equivalent | ||||
| Battery Operation | 2.5 hours (Typ.), Rechargeable Li-Ion battery | ||||
| AC Power | 100V - 220V AC, 50 / 60 Hz | ||||
| Dimensions | Approx. H121 mm x W105 mm x D195 mm (excluding projection) | ||||
| Weight | Approx. 1.3kg (including Battery Pack) | ||||
| Standard Accessories | Wired Remote Controller x 1, SD Card x 1, USB Cable x 1, Neck Strap x 1, Grip Belt x 1, Rechargeable Li-Ion Battery x 1, Software x 1, Operation Manual x 1, and Carrying Case x 1. | ||||
| Standard Software | InfReC Analyzer NS9500 Professional | InfReC Analyzer NS9500 Standard *8 | |||
Field of View (F.O.V.) and Spatial Resolution are in proportion to measurement distance.
Lens Type (L=1m) |
2x Telephoto Lens
|
Standard Lens |
2x Wide Angle Lens
|
3x Wide Angle Lens
|
|
| Field of View (H) x (V) | 29 x 22 cm | 57 x 42 cm | 128 x 92 cm | 211 x 149 cm | |
| Spatial Resolution | Standard Mode | 0.44 mm | 0.9 mm | 1.74 mm | 3.1 mm |
| Super Resolution (SR) mode *5 | 0.3 mm | 0.6 mm | 1.16 mm | 2.1 mm | |
Lens Type |
21μm Closeup Lens
|
52μm Closeup Lens
|
| Spatial Resolution | 21μm | 52μm |
| Working Distance | 22 mm | 56 mm |
| Field of View | 13 x 10 mm | 33 x 25 mm |
*1 Only in the Range 1 at the environmental temperature from 20℃ to 30℃. (In other condition: ±2℃ or ±2%)
*2 Windowing ‘Mode W1（640×240)’
*3 Windowing ‘Mode W2（640×120)’
*4 Still image only
*5 This increased resolution results from detecting characteristic within all frames acquired by the SR process and removing such effects as those caused by hand vibration.
*6 For temperature accuracy: 30 cm to infinity
*7 Thermal image only when image transfer speed at 30Hz.
*8 In order to transfer Thermal image movie data by R550 / R550-D, you need to upgrade to "InfReC Analyzer NS9500 Professional" (optional software).
