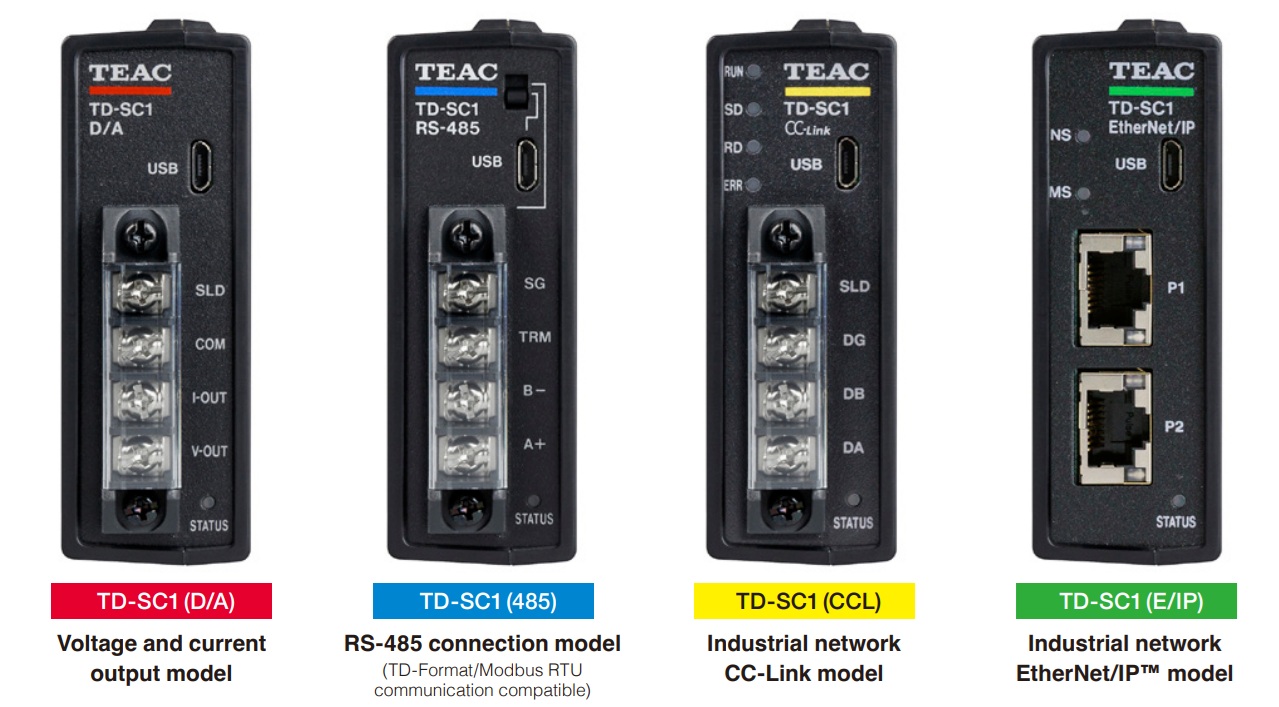

TD-SC1 Strain Gauge Signal Conditioner Series

Thin and light-weight signal conditioner for strain gauge transducers.

SKU TD-SC1 Series Category

Call for price


Strain gauge signal conditioner.

The TD-SC1 is a strain gauge signal conditioner which converts a minute electrical signal of a load cell into an output that matches the specifications of the control unit.
This product is mainly used for pressurising force control of load cells for semiconductor manufacturing equipment, industrial robots, FA equipment, etc.
In recent years, the introduction of IoT in production factories has accelerated rapidly. Amid the demand for improved productivity through centralized management, the TD-SC1 series meets that need.

Product Features

  • Thin, compact, light-weight design
    30 x 85 x 110mm (w x h x d), 210g
  • Din rail mountable
  • TEDs calibration
  • Digital filter
    3, 10, 30, 100, 300, 1000 Hz(−6 dB/oct) or Off as standard
  • High-speed A/D conversion
    high-speed sampling of 20,000 times/sec
  • Status indicator
  • Fieldbuses RS-485, CC-Link *, EtherNet/IP * , etc.
    *CC-Link and EtherNet/IP are coming soon.
Bridge Voltage DC 10 V, 5 V± 10% (30mA current maximum, can be used with remote sense)
Signal Input Range ± 5.0mV/V
Equivalent Input / TEDS Calibration Range ± 5.0mV/V
Calibration Accuracy Within 0.1% F.S. (when using 1m standard TEAC Ø8, 6-core shielded cable with 350Ω impedance, 10V BV and 5mV/V setting)
Accuracy Linearity Within 0.01% F.S. +1 digit (when input is 5mV/V)
Zero Drift Within 0.5µV/ºC (Input conversion value)
Gain Drift Within ± 0.005% F.S/ºC
A/D Conversion 24-bit, 20000 times/second
Digital Filter Select 3, 10, 30, 100, 300, 1000 Hz(−6 dB/oct) or none
D/A Output** 4000 times per second, isolated output, ±1–±10V voltage output (set in 1V steps) and about 1/59000 resolution (when set to ±10 V), or 4–20mA current output and about 1/43000 resolution
TEDS Function IEEE1451.4 class 2 mix mode interface
Indicator Value Display Range −99999 to 99999
Decimal Point Display position selectable
Times Displayed Select 4, 6, 10 or 20 times/second
Settings Calibration Settings Zero Balancing, TEDS Calibration, Actual Load Calibration, Equivalent Input Calibration
Functions High limit, low limit, comparison mode, hysteresis, nearly zero, moving average, low pass filter, motion detect, zero tracking, static strain, digital zero, digital offset, zone definition, hold mode, lock, minimum grid, display times, bridge voltage, digital zero limit, clear digital zero, comparison output pattern, select data output**, D/A converter**, remote sense
Hold Function Sample hold, peak hold, bottom hold, zone definition hold (peak, bottom)
External Input and Output Signals Input Hold, clear, digital zero (isolated from main unit circuits using a photocoupler)
Output HI, OK, LO open collector output (isolated from main unit circuits using a photocoupler)
RS-485* A+, B–(isolated from main unit circuits using a photocoupler), TRM, SG
Power Supply Ratings: 24V DC ± 10% 7W
Operating Temperature Range 0℃ to 40℃
Storage Temperature Range –20℃ to 60℃
Operating Humidity Range 85% RH or less (without condensation)
Applicable Standards UKCA, CE marking, FCC (Class A), UL61010-1
External Dimensions (w x h x d) Approximately 30 mm × 85 mm × 110 mm (without protrusions)
Weight 210g approximately.

* TD-SC1 (485) only
** TD-SC1 (D/A) only
