FOTRIC TK8 Entry-level Thermal Camera

  • Manual focus
  • 49° wide angle shot
  • 40mk thermal sensitivity

Call for price


FOTRIC TK8 Entry-level Thermal Camera

The FOTRIC TK8 is an entry-level thermal camera that comes with Manual Focus for precise measurements at any distance. It features a robust build with 384×288 IR resolution and 40mK Thermal Sensitivity. The device is designed with a user-friendly Android interface to ensure an intuitive experience. Moreover, it offers a 25-degree lens option that caters to various industries such as building inspections, HVAC, and electric distribution. With the FOTRIC TK8, you can easily import inspection data into the AnalyzIR software via WiFi and generate reports with a single click.

Product Features

  • Manual focus
  • 49° wide angle shot
  • 40mk thermal sensitivity
  • 384 x 288 thermal pixels
  • Super resolution
  • T-DEF® Fusion 0~100% adjustable transparency
  • 3.5” LCD touch screen
  • 8MP industrial grade digital camera
  • Dust and water resistant (IP54)
Key Features TK8
IR Resolution(SR) 384 x 288
Thermal Sensitivity (NETD) 40mk(0.04°C)@30°C

Lens /Field of View

25° x 19°

Focus Mode Manual Focus
Frame Rate 40Hz
Build-in digital camera 8 MP industrial camera
Image Modes Thermal Image Mode, Visible Light Mode, Picture in Picture Mode, T-DEF (Image Fusion) Mode
Temperature Range -20 °C to 350°C
Measurement Accuracy ±2 °C or 2% , whichever is greater (at 25 °C ambient temperature)
Measurement Tools Spot:6
Display Screen 3.5 inch Touch Screen
Palettes 8 Palettes,8 Inverted Palettes
Storage Card TF card, 32GB, expandable to 128GB
On Device Analysis Support
Voice & Text Annotation Support (120 seconds for voice annotation)
Remote Display
(with AnalyzIR Software)
Battery Rechargeable Li-ion, 3.6V, 5000mAh
Battery operation time ≥4 hours
Operation temperature -20°C to 50°C
Storage temperature -40°C to 70°C, without battery
2m (GB/T 2423.8/IEC 60068-2-32)
Weight ( include battery) 800g
Enclosure rating IP54
Warranty 2 years
Supplied with:

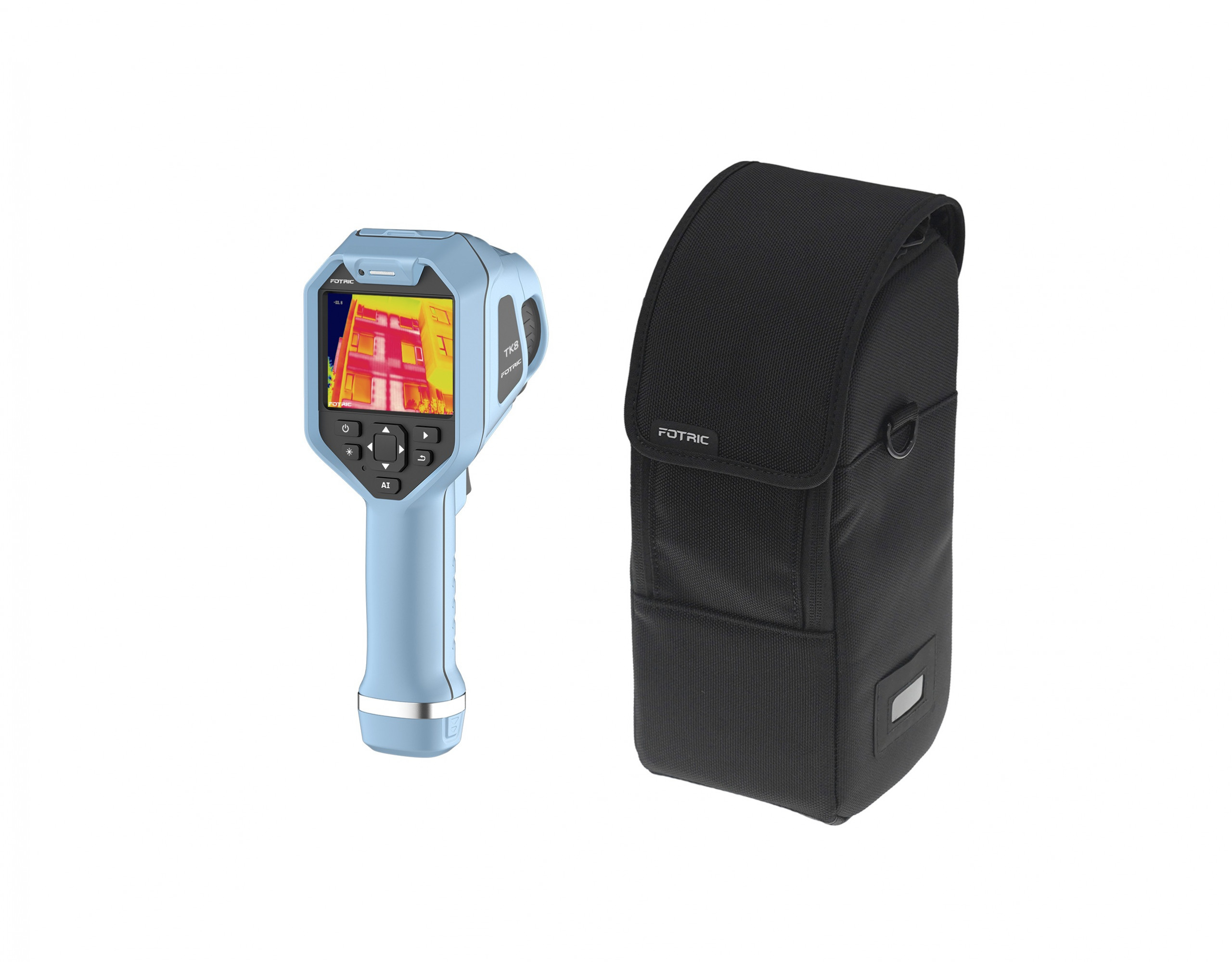

FOTRIC handheld thermal camera, documentations (certificate of quality, certificate of calibration, warranty card, packing list), user manual, USB-Type C cable, TF card TF card reader, power adaptor, 2 batteries.
FOTRIC TK series Thermal Camera Brochure and Specifications FOTRIC TK series Thermal Camera Brochure and Specifications
