Entry-level handheld thermal imaging camera with L49 lens.
Focus free.
Temperature range up to 350℃.
Call for price

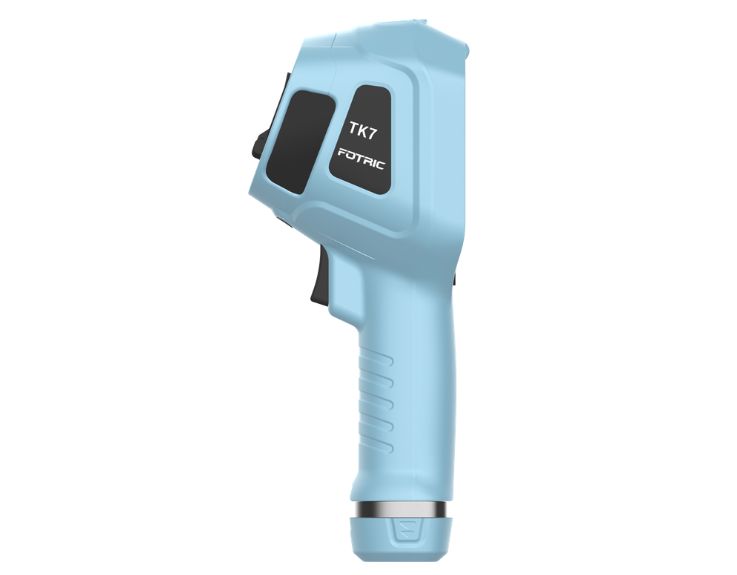

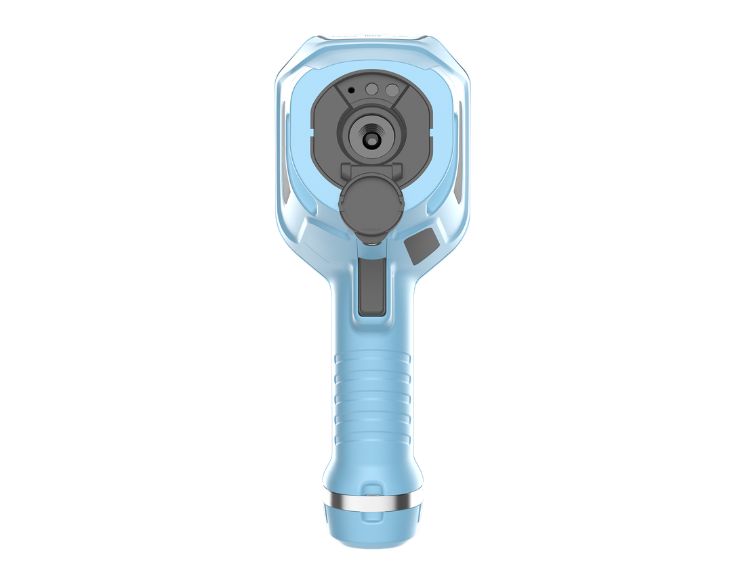

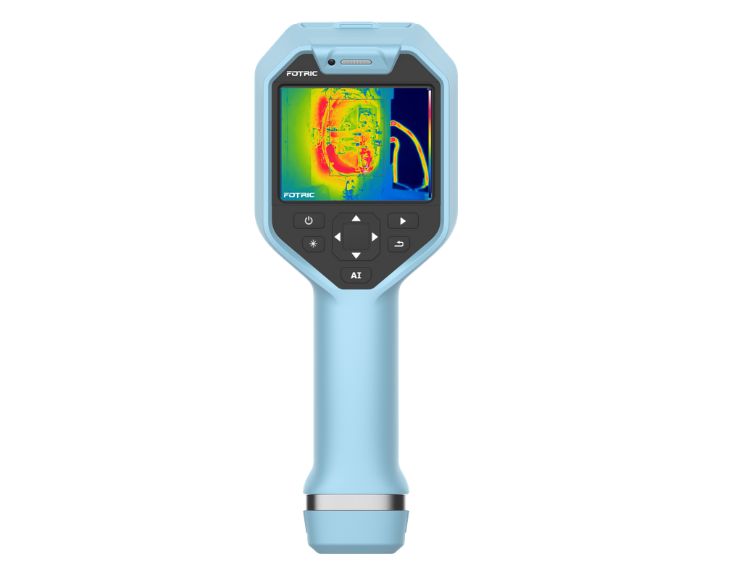

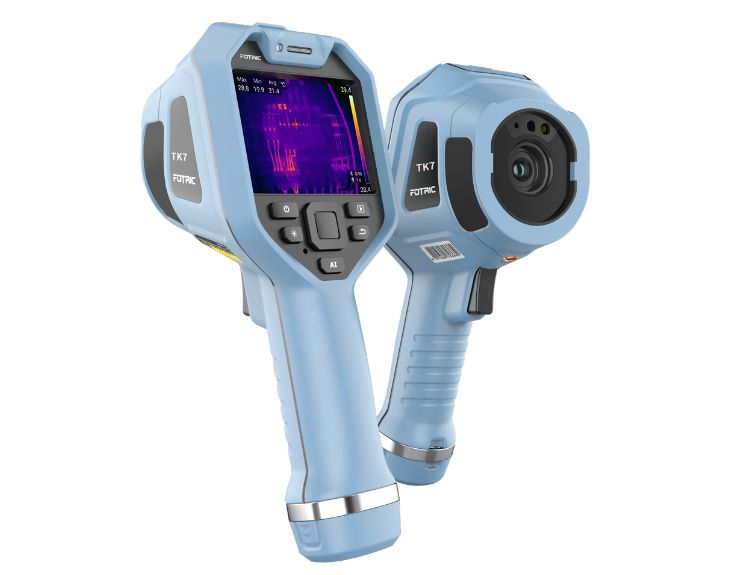

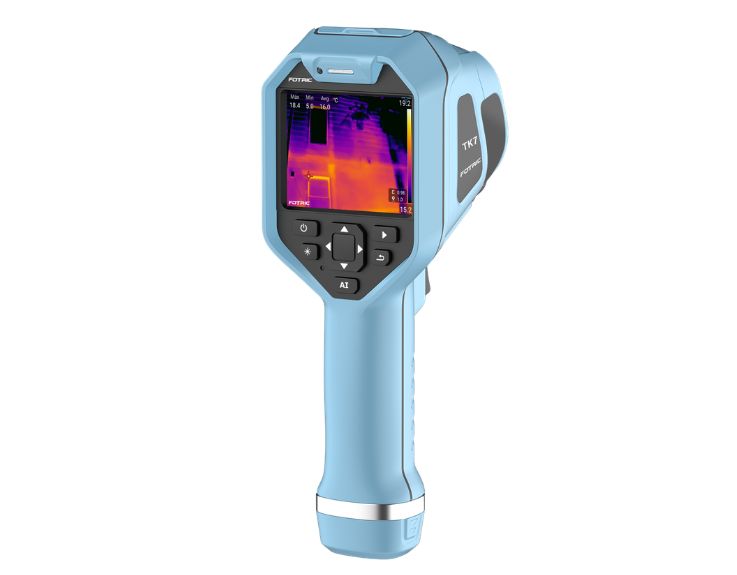

The FOTRIC TK7 Thermal Imaging Camera is a user-friendly handheld thermal camera that serves as an entry point to professional thermography. With its robust construction, 384×288 IR resolution, and a sensitivity of 40 mK, it ensures a high-quality experience for your industrial inspections.
The camera’s 49° lens and its temperature range of up to 350°C makes it suitable for various applications including building inspections, HVAC, and electric distribution. After completing your inspections, you can easily transfer data to the AnalzyIR software via WiFi and generate reports with just one click.
| IR Resolution | 382 x 288 |
| Super Resolution (SR) | 764 x 576 |
| Thermal Sensitivity (NETD) | 40mk (0.04° C)@30° C |
| Lens / Field of View | 49° x 37° |
| IFOV with Standard Lens (Spatial Resolution) | 2.27 mrad |
| Minimum Focus Distance | 0.4m |
| Focus Mode | Focus Free |
| Spectral Range | 8-14μm |
| IR Detector Type | Uncooled FPA Infrared Detector |
| Detector Pitch | 17μm |
| AI programmable Key | Support, for function shortcut |
| T-DEF™ Thermal and Visible Light Image Fusion |
Support, thermal and visible light image fusion, transparency 0% ~100% |
| Picture in Picture | Support, resizable and movable |
| TWB™ Histogram Thermal Colour Display |
Support |
| IREdge | Support |
| IRExplorer | Support |
| Built-in Digital Camera | 8 MP Industrial Camera |
| LED Flash Lamp | Support |
| Frame Rate | 30Hz |
| Temperature Range | -20° to 350°C |
| Measurement Accuracy | ±2 ° C or 2% , whichever is greater (at 25 °C ambient temperature) |
| Measurement Tools | Spot: 6 Line: 2 Rectangle / Circle: 4 |
| Measurement Parameters | Emissivity Ambient Temp Partial Emissivity Reflected Temp Relative Humidity Distance IR Window Compensation. |
| Display Screen | 3.5inch Touch Screen |
| Image Mode | Thermal Image Visible Light Picture in Picture T-DEF™ |
| Palettes | 8 Palettes 8 Inverted Palettes |
| Temperature Span Mode | Automatic Manual Touch |
| Minimum Temperature Span | Auto: 3°C Manual: 2°C Touch: 2°C |
| Info Display | Max Min Avg Measurement parameters |
| Max and Min Point Tracking | Support |
| Digital Zoom | 1-8x, continuous |
| Storage Card | TF card, 32GB |
| Capture Mode | Single frame capture and Time-lapse |
| Video Recording | MP4 Video recording |
| File Format | Full radiation thermal photo (JPEG.) visible light photo MP4 video |
| Gallery | Support |
| On Device Analysis | Support |
| Voice Annotation | Support (120 seconds) |
| Text Annotation | Support |
| Tags | Support |
| Favourite | Support (Filter Favourite Files) |
| PC Analysis and Report Software | AnalyzIR |
| Wi-Fi Connection | Support 2.4GHz&5GH channel Support 802.11a/b/g/n/ac |
| USB | USB Type-C type USB 3.0 / 2.0 compliant Support USB OTG |
| HDMI | Micro HDMI type HDMI 1.4 compliant Support 1080P imaging video streaming in 60Hz. |
| Remote Display | Support |
| Remote Control | Support |
| Battery | Rechargeable Li-ion, 3.6V, 5000mAh |
| Battery Operation Time | ≥4 hours |
| Battery Charging Time | 3.5 hours to full-charge by battery dock. 2.5 hours to full-charge by connection to camera. |
| Charging Methods | Support battery dock adaptor and Type-C interface (compatible with cell phone charger). |
| Auto Screen-Off | Support |
| Storage Card Interface | TF Card Support Hot-plug. |
| Laser Pointer | Level 2 Wavelength: 635nm Power: <1mW |
| Operation Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C, without battery |
| Relative Humidity | <95%RH (Operation and Storage) |
| Safety | SELV relay (GB 4943.1/IEC60950-1) |
| Electromagnetic Compatibility | GB/T17626.2/IEC 61000-4-2 |
| Vibration | 2g (GB/T 2423.10/IEC 60068-2-6) |
| Shock | 25g (GB/T 2423.5/IEC 60068-2-27) |
| Collision | 10g (GB/T 2423.6/IEC 60068-2-29) with packing |
| Drop | Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
| Dimension (mm) | 243 x 95 x 142 |
| Weight ( include battery) | 800g |
| Enclosure Rating | IP54 |
| Tripod Interface | UNC 1/4 -20 threaded hole for tripod |
| Warranty | 2 years |
| Recommended Calibration Cycle | 2 years |
| Supported Languages | English, Spanish, Korean, Traditional Chinese, Italian, German, Portuguese, Thai |
| RoHS Compliant | Yes |

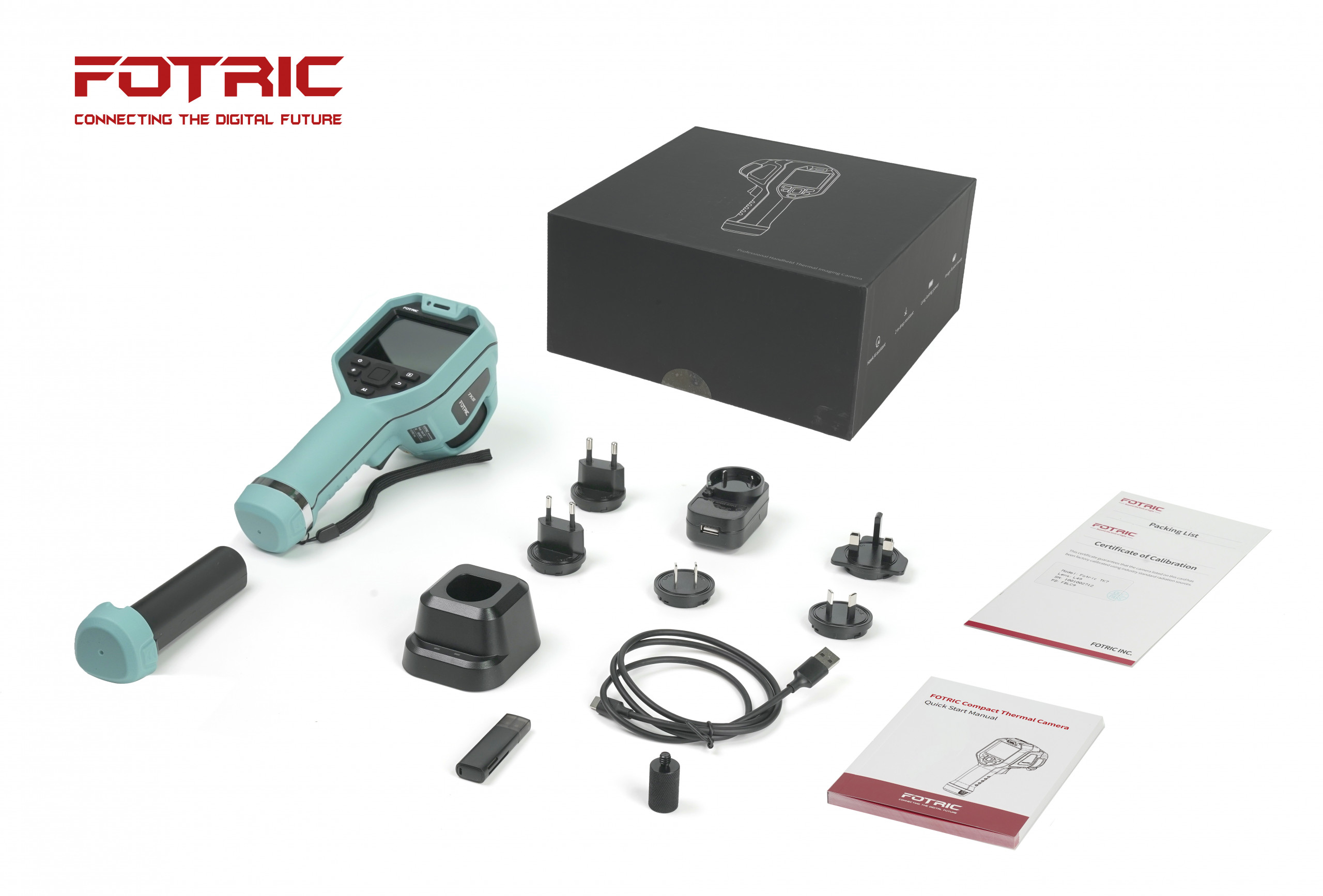

| Supplied with: FOTRIC handheld thermal camera, documentations (certificate of quality, certificate of calibration, warranty card, packing list), user manual, USB-Type C cable, TF card, TF card reader, power adaptor, 1 battery. |
|
