Process up to 46 analogue input channels at both low and high rates of sampling.

SKU Expert Logger Series Categories ,
Manufacturer:

Call for price

Description

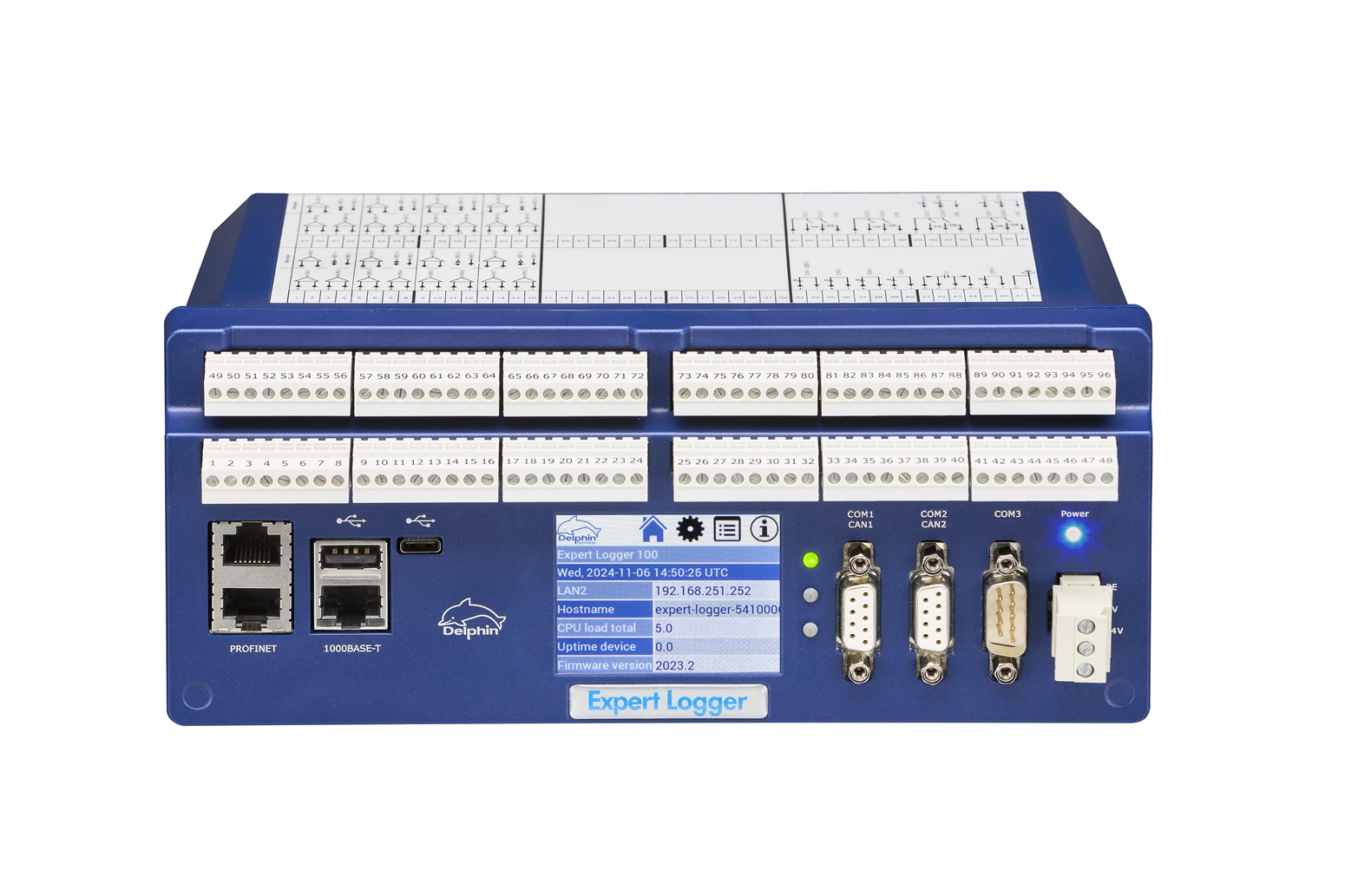

Delphin Technology’s Expert Logger is available in four variants, differing in their number of analogue and digital channels. With just one device, you can independently process up to 46 analogue input channels, at both low and high sampling rates. All channels are galvanically isolated from each other. Measured data undergoes precision recording, monitoring and pre-processing and can be stored internally within the device. LAN, USB, WAN or UMTS / LTE are available to transfer measurement data to a PC or server. Integrated interfaces such as PROFIBUS, Modbus and OPC UA enable optimal connectivity to existing infrastructure.

The Expert Logger is a highly flexible data recording system designed to meet your specific measurement requirements. Simple and quick channel configuration enables the Logger to be efficiently adapted to your requirements and it can be up and running in the shortest possible time.

Product Features

  • Up to 46 universal analogue inputs (24-bit resolution)
  • Up to 24 digital inputs and switching outputs
  • UMTS / LTE, WLAN, USB
  • Automated email and text message alerts
  • Software channels for analysis, monitoring, control and regulating
  • Versatile interfaces
  • High galvanic isolation voltage
  • PROFIBUS Sniffer
  • 24-bit resolution and high-precision measurement
  • External data storage

Sensor Connection

  • Universal analogue inputs (mV, mA, thermocouples, RTD, strain (full bridge))
  • Switch signals, frequency and pulse counters
  • Pluggable screw terminals

Interfaces / Protocols

  • LAN, USB
  • SDI 12 interface for environmental sensors
  • Serial interfaces RS232, RS485
  • OPC UA, Modbus TCP/RTU
  • PROFIBUS DP, CAN RAW
  • Configuration of individual ASCII protocols
  • NMEA for GPS sensors (optional)

Internal / External Data Storage

  • 2 GB or 14 GB internal storage
  • External storage media (USB, NAS)
  • Event-triggered recording with pre and post histories
  • Push function

Applications

  • Measurement data acquisition
  • Environmental measurement technology
  • Product testing
  • Laboratory data acquisition
  • Fault data acquisition
  • Trials and testing
  • Energy data acquisition and optimisation
  • Remote data transmission
  • Control
Device Type
100
200
300
400
Analogue inputs (mV, mA, TC)
16
32
46
16
Appropriate for RTD's 8 16 23 8
Total sampling rate 1000 Hz 2 groups
per 1000 Hz
3 groups
per 1000 Hz
1000 Hz
Voltage measurement ranges ±156 mV to ±10 V
Current measurement ranges 0 to 20 mA, 4 to 20 mA, free
Current reference for resistance measurement 100 μA, 200 μA or 1 mA (4-wire); 2 x 200 µA (3-wire)
Resistance measurement ranges 0 to 100kΩ
Resolution/Type ADC / input impedance 24 bit Sigma-Delta / 1 GΩ
Internal reference junctions yes / 2 yes / 4 yes / 6 yes / 2
Withstand voltage / galvanic isolation ±110 VDC / ± 400 VDC to PE, other channel group
Measurement accuracy V/mA: 0.01% of upper range value
RTD's: 0.1 K (4-wire connection)
Thermocouples (external thermoblock): 0.3 K
Thermocouples (internal reference junction): < 1.0 K
Resistance measurement: 0.02% of upper range value (4-wire connection)
Strain gauge voltage excitation
1
1
0
0
Voltage internal: 5 VDC ± 10 mV, external: 1 / 2.5 / 5 / 10 V
Analogue outputs
0
0
0
6
Resolution 16 bit
Output ranges 0 .. 10 V / ± 10 V / 0 to 5 V / ± 5 V / 0 to 12 V / ± 12 V / 0 to 6 V / ± 6 V / 0 to 20 mA / 0 to 24 mA
/ 4 to 20 mA
Galvanic isolation ±400 VDC to system / PE
min. load / max. burden 625Ω / 950Ω
Number of digital channels
Digital inputs up to 1 MHz 3 3 0 0
Digital inputs up to 250 Hz 1 1 0 1
Digital outputs 4 4 0 0
Digital inputs / outputs 4 4 1 24
Technical information digital inputs
Input signal low: 0 to 1V / high: 5 to 100 VDC@3.5 mA
Frequency range / width counter 0.2 Hz to 1 MHz, respectively 0.2 Hz to 250 Hz / 64 bit
Galvanic isolation ±400 VDC to PE / other channels
Technical information digital outputs
Max. switching voltage / current 50 V / 2.5 A for 2 seconds, 250 mA continuous current
PWM function / Pulse duty factor Basic frequency 5 Hz to 10 kHz / 1:1000
Galvanic isolation ±400 VDC to PE, other channels
Data storage
Data storage internal 2 to 14 GB (approx. 30 million measurement values per GB)
Data storage external USB, NFS, CIFS, (S)FTP
Interfaces / protocols
Sensor bus SDI12 1 1 0 0
COM1 und COM 2 RS485, 9-pole sub-D socket/ASCII, Modbus RTU, PROFIBUS DPV1 Slave
COM 3 RS232, 9-pole sub-D plug/ASCII, Modbus RTU
LAN 1 x 1000 Base-T
WLAN (optional, alternative to WWAN) 802.11 b/g/n
WWAN (optional, alternative to WLAN) UMTS, LTE max. 100 Mbit/s
USB Device 2.0 Host / 2.0 / low / high / full
TCP / IP protocols (LAN, WLAN, WWAN, USB) Modbus TCP server & client, OPC UA server & client
CAN / RS 232/485 2x CAN 2.0/ Modbus RTU master & slave, SCPI, ASCII
General Technical Information
Dimensions / weight H 217 x W 88 x D 128 mm / 750 g
Fixing Rail mounting DIN EN 60715 or screw fixing
Signal connections Plug-in screw terminals, 96 terminals in 2 rows, max. 1.5 mm²
Temperature range -20 to 50 °C (Sufficient air circulation in the control cabinet must be ensured)
Humidity max. 90 % relative humidity, non-condensing
Power supply 12 to 24 VDC / ± 10%
Power input normal mode max. 15 W
Power input sleep mode 5 mW@12 V, 10 mW@24 V
