Expert Transient

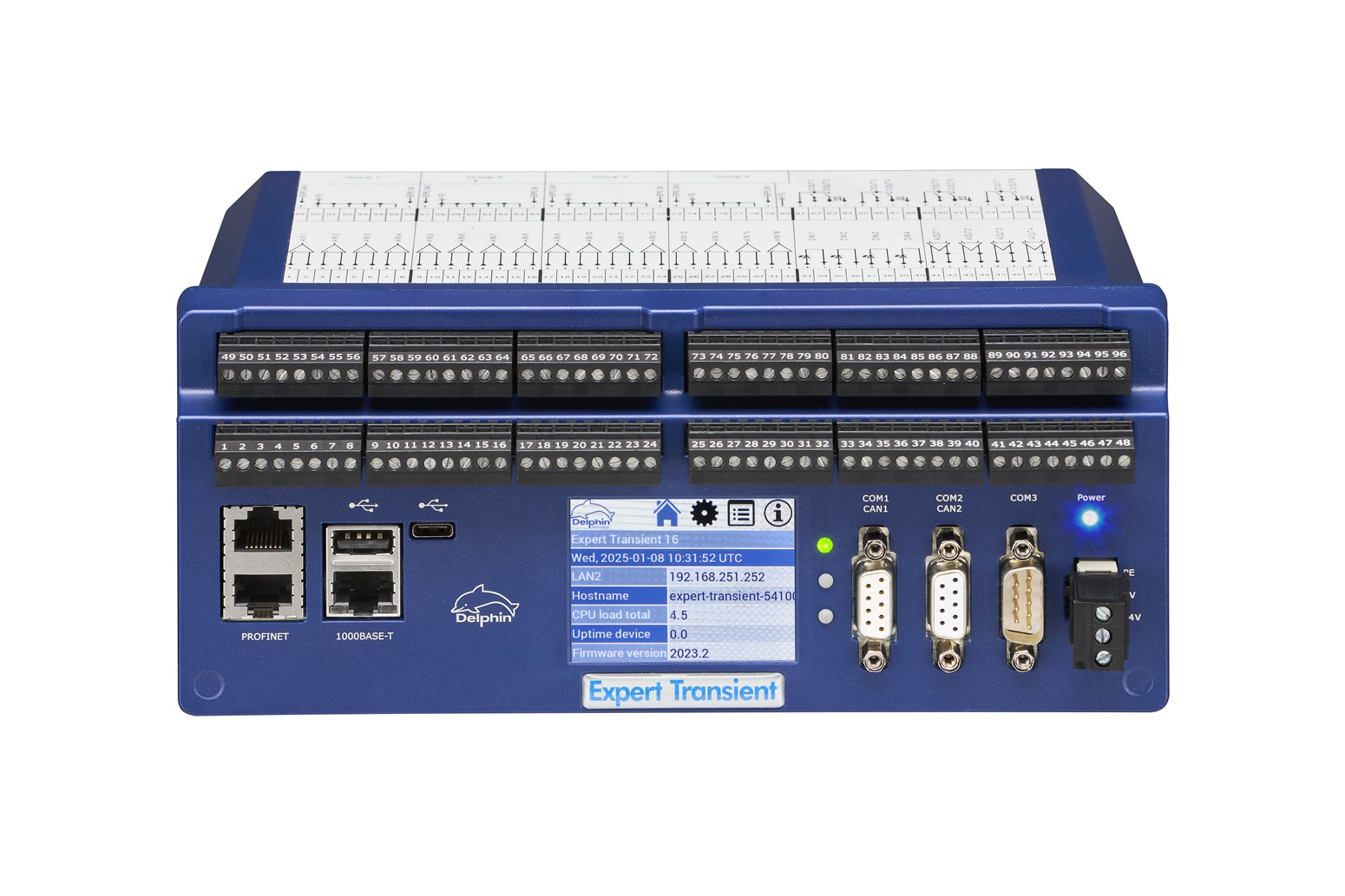

Expert Transient is a data recorder that can operate independently for the synchronous acquisition of transient and periodical processes. Measurement data can be triggered or continuously recorded over long time periods. Expert Transient is equipped with the powerful FPGA technology.

SKU Expert Transient Categories ,
Manufacturer:

Call for price

Description

Transient recorder from Delphin Technology.

The Expert Transient is suitable for acquiring and analysing fast, transient and sporadic signals, as well as periodic and continuous processes. With this transient recorder speed is guaranteed by a high sampling rate of up to 50 kHz per channel and a high 24-bit resolution. Triggered data recording turns fault incidents into measurement data files, which results in making evaluation much easier.

You can adapt the transient recorder to your specific needs – from basic limit value monitoring, to characteristic value calculation – using its integrated software channels to process the measurement data independently of a PC. Serial interfaces enable connection to machine control systems. Additionally, data can also be transmitted via a bus system and recorded using a sniffer. Another benefit of this logger is that all channels are galvanically isolated from each other as well as from the integrated interfaces, therefore avoiding feedback.

Product Features

  • Synchronous acquisition of 4, 8, 12 or 16 galvanically isolated analogue inputs
  • Definable multiple, flexible trigger events
  • Online calculation of effective and peak values
  • 50 kHz sampling rate per channel
  • 24-bit resolution and high-precision measurement
  • Email and text message alerts
  • PROFIBUS Sniffer
  • Extendible

Sensor Connection

  • mV / mA signals
  • Measuring range up to ± 25 V
  • Pluggable screw terminals

Interfaces

  • LAN, USB, WLAN (optional), LTE (optional)
  • Serial interfaces RS232, RS485
  • OPC UA, Modbus TCP/RTU
  • PROFIBUS DP, CAN RAW
  • PROFIBUS Sniffer
  • Individual ASCII protocols

Data Storage

  • Independent, internal 2 GB or 14 GB storage
  • External storage media (USB, NAS)
  • Triggered storage with pre and post histories

Applications

  • Fault finding and analysis of PLC-based systems and machines without having to interrupt control systems
  • Crash, detonation and explosion testing
  • Fast data acquisition on test stands
  • Data acquisition from drive systems and frequency converters
  • Fault analysis on gas compressor plants, turbines, compressors and conveyor belts
  • Materials research and environmental simulation
Inputs / Outputs
Analogue inputs
4, 8, 12 or 16
Sampling rate, adjustable per channel 20 Hz to 50 kHz
Usable signal range DC to 20 kHz
Voltage range ± 25 V
Current ranges 0 to 20 mA / 4 to 20 mA / free
Signal conditioning, software switchable None, AC-coupling, IEPE
Resolution/Type ADC / input impedance 24 bit Sigma-Delta / 4 MΩ
Dielectric withstand voltage ± 100 VDC
Galvanic isolation channel to channel / channel to system / PE ± 400 VDC
Measurement accuracy 0.5 mV + 0.008 % from measurement value
Digital inputs
4
Input signal low: 0 to 1 V / high: 5 to 100 VDC@3.5 mA
Galvanic isolation channel to other channel types / channel to system / PE ± 400 VDC
Max. input frequency / min. pulse width 1 MHz / 500 ns
Analogue outputs
4
Resolution 16 bit
Output ranges 0 to 10 V / ± 10 V / 0 to 20 mA / 4 to 20 mA / ± 20 mA
Galvanic isolation channel to other channel types / channel to system / PE ± 400 VDC
Min. load / max. burden 650 Ω
Digital outputs
8
Switching voltage / current / PWM 50 V / 2.5 A for 2 seconds, 250 mA continuous current / galvanically isolated / 5 Hz to 10 kHz, up to 1:1000
Data Storage
Internal / external 2 to 14 GB ( approximately 30 million measurements per GB) / USB, NFS, CIFS, (S)FTP
Signal conditioning functions
High pass / low pass / bandpass filters
Cut-off frequency / filter order / filter characteristics 5 Hz to 20 kHz / 4, 6, 8, 10 / incl. Butterworth
Integrator / Differentiator
Single or double-integrator / differentiator
Characteristic values from time signal
Maximum / minimum value, peak-to-peak value, arithm. average, TRMS, max, vect. sum, local min. / max, values
Characteristic values on digital input
Frequency 0.2 Hz to 1 MHz
Counter 64 bit, UP-Down counter, quadratur decoder
Interfaces
Physical equipment COM 1 / COM 2 RS485, 9-pole sub-D socket, IEC 61158-2
Physical equipment COM 3 RS232, 9-pole sub-D plug
LAN 1 x 1000Base-T
WLAN / WWAN (optional) 802.11b/g/n / GPRS, UMTS, LTE max. 100 Mbit/s
USB Device 2.0 / host 2.0 / low / high / full
PROFIBUS 2 x PROFIBUS DPV1 / Slave max. 12 Mbit, also redundant according to PNO 2.212 V1.2, passive PROFIBUS sniffer
CAN / RS 232/485 2 x CAN 2.0 / Modbus RTU master & slave, SCPI, ASCII
TCP/IP Modbus TCP server & client, OPC UA server & client
General Technical Information
Dimensions / weight H 217 mm x W 88 mm x D 128 mm / 750 g
Fixing Rail mounting DIN EN 60715 or screw fixing
Signal connections Plug-in screw terminals, 96 terminals in 2 rows, max. 1.5 mm²
Temperature range -20 to 50 °C (Sufficient air circulation in the control cabinet must be ensured)
Humidity max. 90 % relative humidity, non-condensing
Power supply 12 to 24 V / ± 10%
Power input max. 20 W
