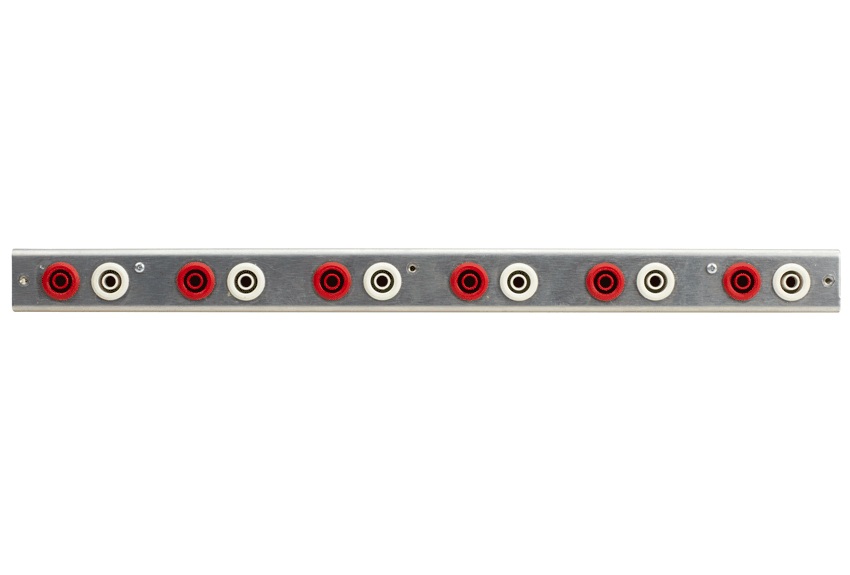

6 Ch High Voltage Board up to 1000V

High Voltage Module for Sefram’s DAS1700 Data Acquisition System and 8460 Thermal Chart Recorder.

SKU 916006000 Category Tags ,
Manufacturer:

£4,400.00 ex VAT

Available on back-order

Description

High Voltage Module for Sefram’s DAS1700 Data Acquisition System and 8460 Thermal Chart Recorder.

Key Features

  • 6 isolated channels
  • Max voltage: ± 1000VDC or 1000VAC 50Hz
  • Resolution: 14 bit
  • Sampling: 1Msa/s max. (1μs)
  • This board is compatible with frequency recording, RMS recording, counter mode and power analysis
  • Safety: CAT III – 1000V and CAT IV – 600V
Voltage
Number of Channels 6 isolated channels
DC Voltage Range 100mV to 2000V
Maximum DC Voltage 1000 V DC
Direct Voltage Accuracy ± 0.2% of range ± 0.2% of offset
AC RMS Voltage 100mV to 1000V RMS
Maximum AC Voltage 1000V AC RMS
RMS voltage Accuracy 1 % of range
Bandwidth 26 kHz
Bandwidth for RMS Measurement 5 Hz - 500 Hz
Crest Factor 2,2
Input Impedance 11 MΩ for ranges < 10 V / 25 MΩ for ranges ≥ 1 V
Input Capacitance 150 pF
Frequency
Sensitivity 300 mV
Duty Cycle 10 %
Frequency Range 10 to 100 kHz
Accuracy 0.2 % of range
Sampling
Vertical Resolution 14 bits
Maximum Direct Voltage Sampling Rate 1 MSa/s (1 μs) each channel
Maximum RMS sampling rate 5 kSa/s (200μs) each channel
Analogue Filters 100 Hz, 1 kHz, 10 kHz
Digital Filter Setting < 100 Hz
