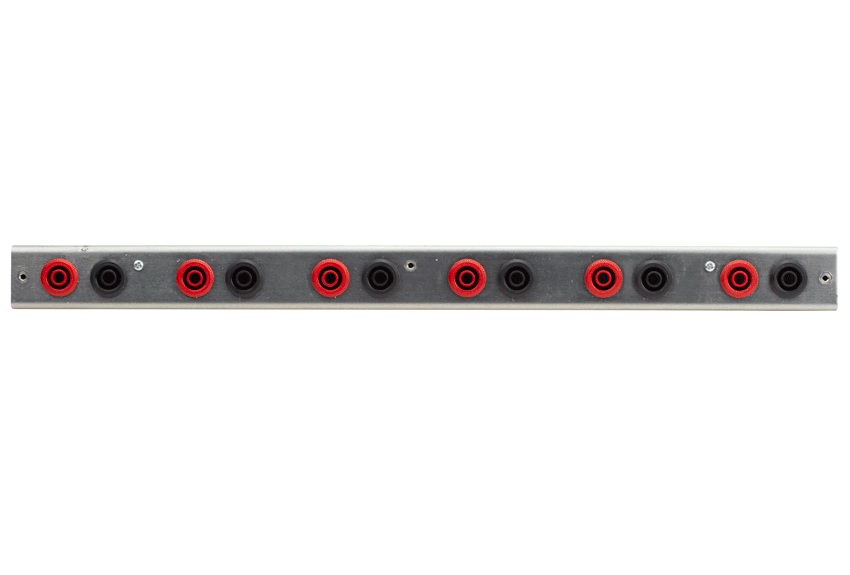

Universal 6 Ch Board up to 500V

Universal Module for Sefram’s DAS1700 Data Acquisition System and 8460 Thermal Chart Recorder.

SKU 984401000 Category Tags ,
Manufacturer:

£3,970.00 ex VAT

Available on back-order

Description

Module for the DAS1700 Data Acquisition System and 8460 Thermal Chart Recorder.

Key Features

  • 6 isolated channels
  • Max voltage: ± 500VDC or 424 vrms
  • Resolution: 14 bit
  • Sampling: 1MSa/s max. (1μs)
  • This board is compatible with voltage recording, current recording, frequency recording, RMS recording, thermocouple recording, counter mode and power analysis
  • Safety: CAT III – 500V
Voltage
Number of Channels 6 isolated channels
DC Voltage Range 1mV to 1000 V
Maximum DC Voltage 500 V
Direct Voltage Accuracy ± 0.1 % of range
Bandwidth 100 kHz (-3 dB)
AC RMS Voltage Range 200 mV to 500 V
Maximum AC RMS Voltage 424 V
RMS voltage Accuracy 1 % of range
Bandwidth for RMS Measurement 5 Hz - 500 Hz
Crest Factor 2
Input Impedance 1 MΩ for ranges > 1 V / 25 MΩ for ranges < 1 V
High Impedance Input Option 10 MΩ for ranges > 1 V / 25 MΩ for ranges < 1V
Input Capacitance 150 pF
Frequency
Sensitivity 100 mV
Duty Cycle 10 %
Frequency Range 1 Hz to 100 kHz
Accuracy 0.02 % of range
Temperature
Thermocouple Type J, K, T, S, B ,E ,N, C, L: -250 °C to 1760 °C
Cold Junction Compensation ± 1.25 °C
Sampling
Vertical Resolution 14 bits
Maximum Direct Voltage Sampling Rate 1 MSa/s (1 μs) each channel
Maximum RMS Sampling Rate 5 kSa/s (200μs) each channel
Analogue Filters 100 Hz, 1 kHz, 10 kHz
Digital Filter Setting < 100 Hz
Safety CAT III - 500 V
