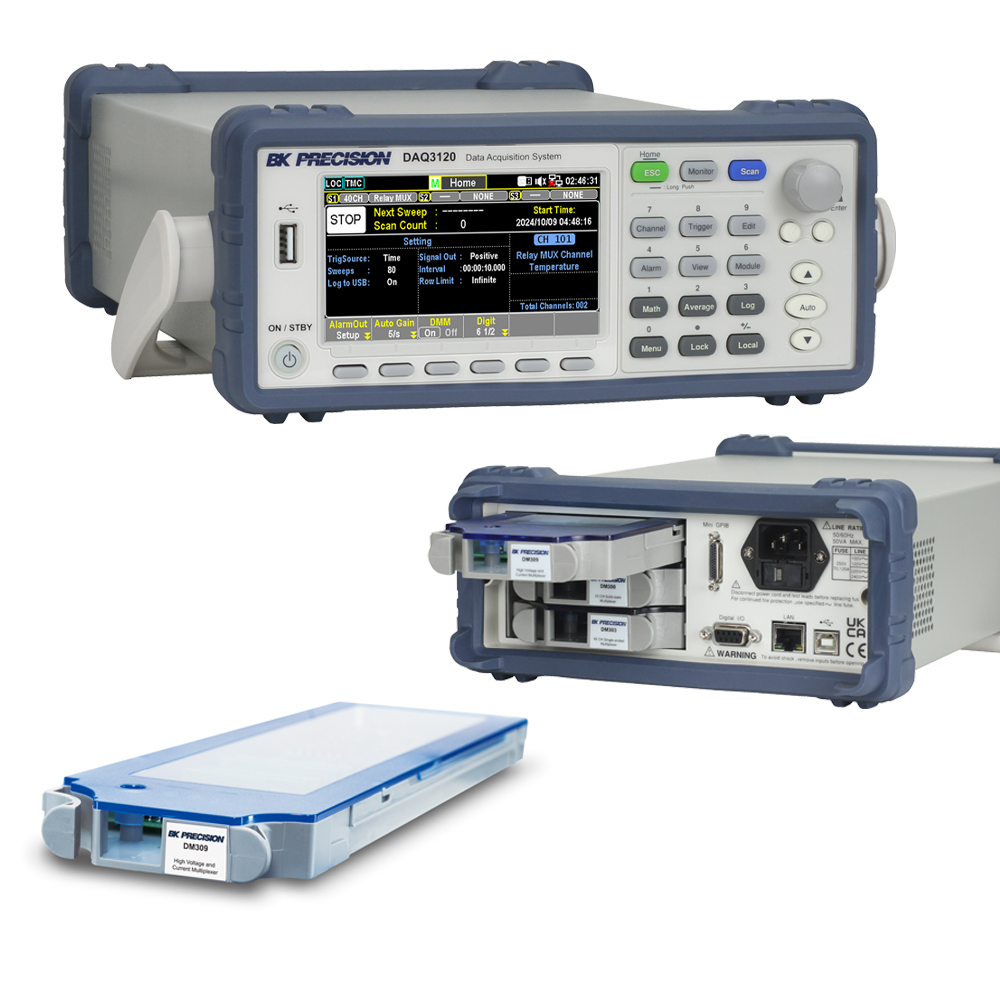

DM308 20-CH Actuator / General Purpose Switch for DAQ3120 Benchtop Data Acquisition System
Call for price

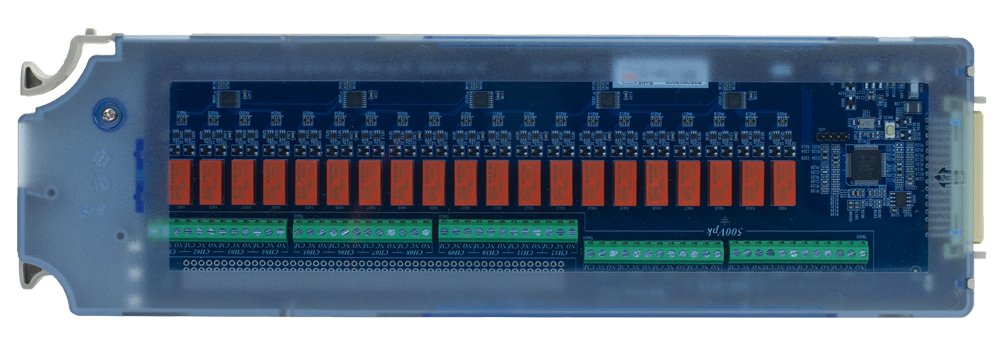

The DM308 20-Ch Actuator / General Purpose Switch (for the DAQ3120) is a dedicated switch module featuring 20 independent single-pole double-throw (SPDT) relays. Each relay is equipped with Normally-Open, Normally-Closed, and Common contacts. This provides users with considerable flexibility in the connection and control of DUTs. Typical applications for this module include power cycling of DUTs, management of indicator and status lights, and activation of external power relays and solenoid valves. This module is rated to handle voltages up to 300 V and currents up to 1 A, with a maximum switching power capacity of 50 W.
